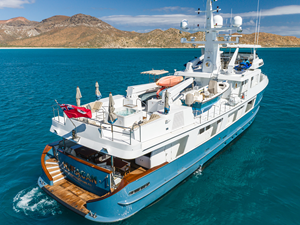

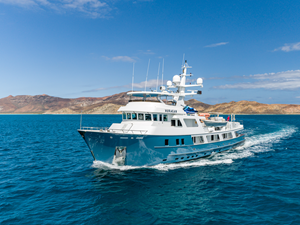

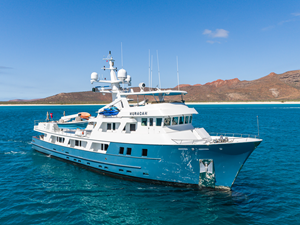

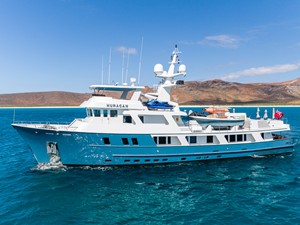

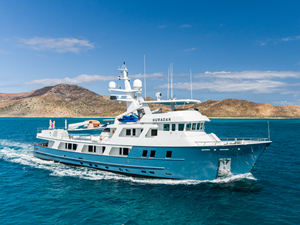

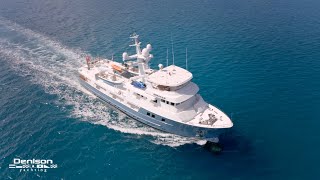

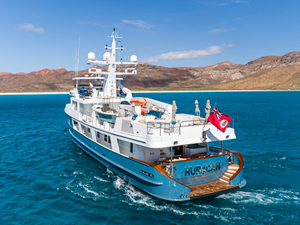

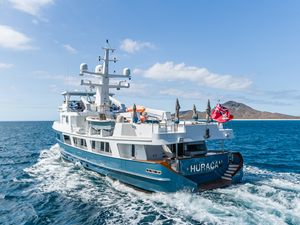

Huracan - 1991 38.1m DELTA Expedition
La Paz Coahuila de Zaragoza Mexico
€8,616,889 EUR

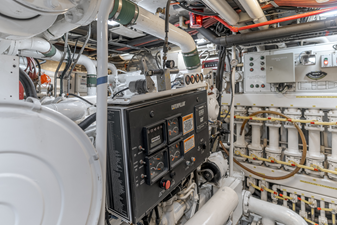

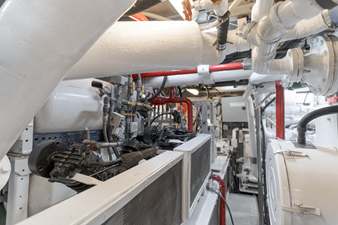

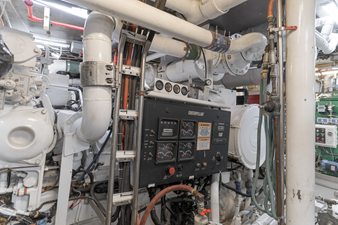

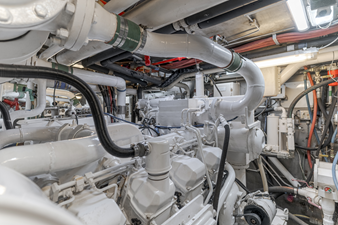

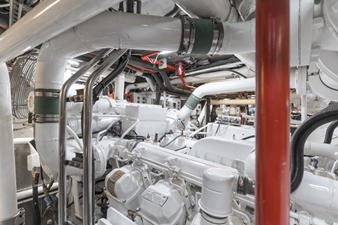

Caterpillar 3508 B Electronically Controlled, with 200 hours Since Major, Complete Overhaul. New Pistons, Rings, Bearings, Connecting Rods, Injectors, Sprayers, Oil Coolers, Gaskets, Seals, Cylinder Heads, Valves, Alternators, Starters Motors, Oil Pans, Expansion Tanks, Turbochargers, Injection Pumps, and All Electronic Sensors.

The Transmissions also received a complete Major Overhaul & Rebuild.

(4) 8D Starting (AGM); (10) 8D Inverter (gel); (1) Group 24; (4) 8D Electronics (AGM) 120/208 VAC 3 Phase DC Wiring: 2 wire Copper Stranded Sheathed AC Wiring: 3 wire Copper Stranded Sheathed Electrical Panel Locations: Engine Room (main); Crew Companionway; Galley; Saloon; Pilothouse; Stateroom Companionway; Crew Mess Main AC Beaker Capacity: 50 & 100 Amp

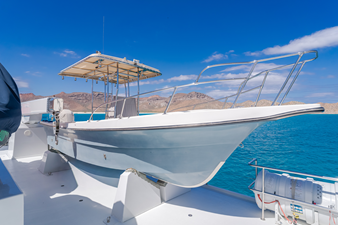

Anchors: (2) Navy Stockless #1250 lbs. each; (1) Sea Anchor Chain size: 3/4 Stud Link Galvanized (2) links (appoximately 800' each) Dinghy/ Tenders: (1) Panga 24' w/ Yamaha 150 hp and; (1) Ribtec 24 RIB w/ yanmar 6LH-STZE inboard/outboard Windlass; (2) Steen Vertical Hydraulic (bow); (2) vertical Hydraulic Aft Maxwell Warping Capstans Search Light: Carlisle & Finch Remote Control Bell: 12" Chrome Horn: Kahlenberg 3-Trumpet air w/ fog control Swimstep: FRP Teak over integral w/ 2 stair Cases

Fire Extinguishers: 30: Type ABC Size l, ll Dry Chem; Carbon Dioxide Fixed System: Ansul Halon 1301 (2) 300 lb. cylinders Distress Signals: Pains Wessex, Orion Smoke Alarm & Carbon Monoxide Detectors: Maretron Life Raft: (2) Viking 25 Person A Pack (non SOLAS) w/ Hydraulic Releases EPIRB: (1) ACR Satellite 406 RLB-32 Fire System: AC Pump w/ 5 Hose Stations

Helm Locations: Pilothouse; (2) Wing Stations; Flybridge Satellite Phone: KVH Tracphone Sonar: Interphase Forward Looking Fathometer: (2) Koden CVB 20A w/ 1 Kw Transducer Autopilot: Simrad AP 48 Radar: (1) Furuno FR-2021 (120 & 96 nm) (1) Furuno FR-2021/ (1)Furuno Navnet T2(48NM) GPS: (2) Furuno GP 32; Maretron Black Box VHF: (2) Icom M604; Icom Command Mic; (6) Standard HX870 (hand) SSB/ HAM: Icom M802; Icom IC 718 Navtex: Furuno NX-700 Intercom System: Panasonic TES 824 Loud Hailer: Raytheon 430 Cellular Phone: Remote Antenna & Amplifier Compass: Magnetic (PH); (1) Satellite; Ritchie Magnetic Plotter: Nobeltec Navigation Software Time Zero Weather Fax: Maretron Weather Station; Internet Via Time Zero Software AIS: Furuno FA-170 Additional: Flir Night Vision Camera M324 XP; Wave WiFi System; Omini Directional TV Antenna

Total Berthing: (16) Shower Stall: (8) Head Type: (9) Dometic Vacuum w/ holding Stove: Bosch 5 Burner Induction Cook Top Oven: Bosch Stainless Steel Refrigerator: Cospolich SS Commercial Grade Dishwasher: Kitchen Aid Microwave: Kitchen Aid Flooring: Jatoba Wood Soles; Linoleum; Marble Heads Trash Compactor: GE Profile Hot Water Heater: Rheem 303 Liter Electric Climate Control: (2) Ocean Breeze 120,000 BTU; (1) Ocean Breeze 60,000 BYU Chillers; (23) Air Handlers

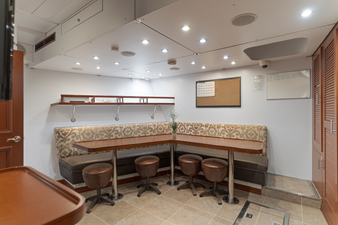

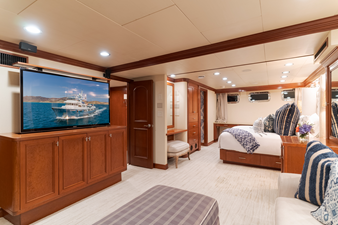

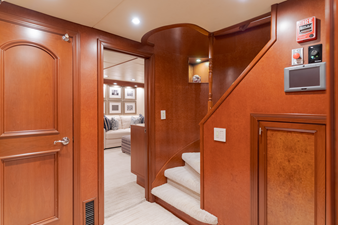

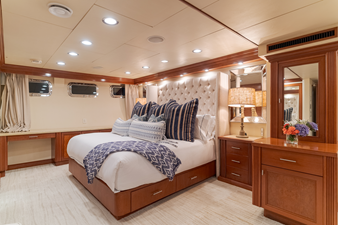

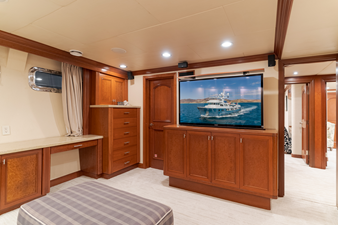

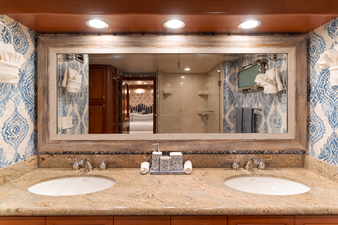

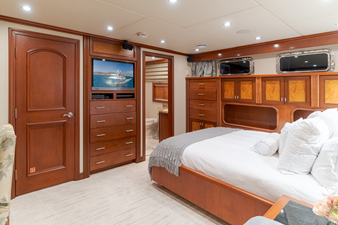

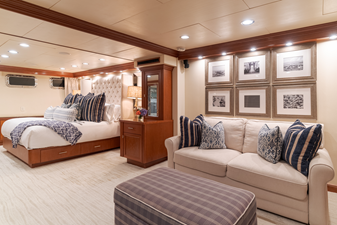

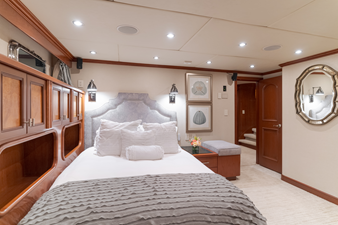

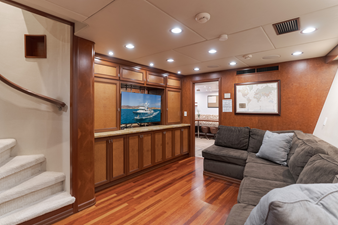

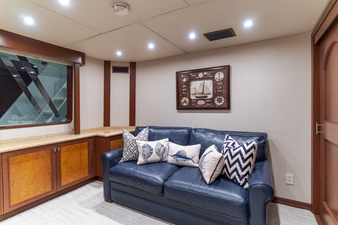

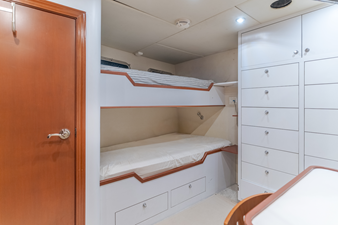

Port Crew Stateroom: (2) Upper/ Lower Berths & (1) Upper Berth w/ Climate control, VHF, 32" Samsung LCD TV, Head w/ Stall Shower Starboard Crew Stateroom: (2) Upper/ Lower Single Berths w/ Climate Control, Samsung 22" LCD TV, Head w/ Stall Shower Library: Marble Counter Tops, Jatoba Hardwood Sole, Burl Wood Walls, Climate Control, Washer/ Dryer in Library (2) Maytag (2) Bosch, Washer/ Dryer in Guest Hall (Bosch), Samsung 55" LCD TV, Crew Mess: Dining Table, Sony Bravia 32' LCD TV, Climate Control, HP Color Laser Jet Pro Printer, Manitowoc Ice Machine, SS Commercial Freezer, Master Stateroom: Queen Island Berth, Cedar Walk in Hanging Locker, Marble Counter Tops, Actuated TV Lift, Sentry Safe, Bose Lifestyle Music System Actuated Deadlight Curtains. Master Head w/ Marble Stall Shower and Granite Counter Tops, w/ Dual Vanity Sinks. Lower Stateroom Foyer: Maytag Washer & Dryer, CCTV Camera Port Guest Stateroom: Double Wide Bunk, Walk In Cedar Lined Locker, Sentry Safe, Bose Music System, Granite Counter Top & Desk, Dometic Vacuum Toilet, Climate Control. Starboard Guest Stateroom: Two Single Bunks, 31" Sony Bravia LCD TV, Climate Control, Desk, Dometic Vacuum Toilet, Walk in Cedar Closet. First Mate Stateroom: Single Berth, Sentry Safe, Climate Control, Philips 22" LCD TV, Dometic Vacuum Toilet, FRP Stall Shower. Captains Stateroom: Queen Size Berth, Carpeted Sole, Climate Control, Desk, Granite Top Night Stand, Maretron TMS 800C Display/ Control, Samsung 26" LCD TV, HP Computer Monitor and Printer, Mac Mini Computer, Dometic Vacuum Toilet, Stall Shower.

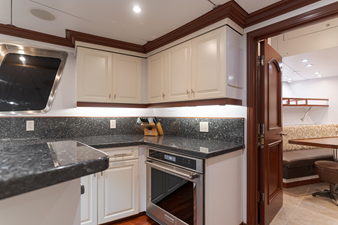

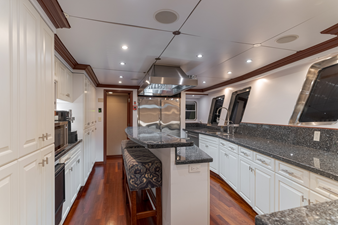

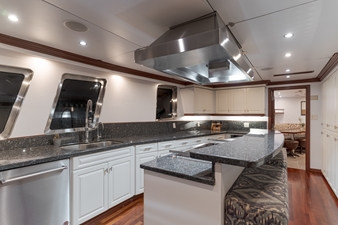

Granite Counter Tops Kitchen Aid Dishwasher U-Line Icemaker Cospolich SS Commercial refer/ Freezer Garbage Disposer Trash Compactor Climate Control Aquaphor Drinking Water System Jura Cappuccino Machine

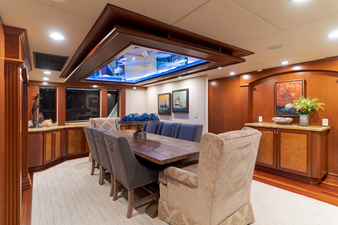

Marble Counter Tops Climate Control Burl Wood Jatoba Wood Sole Frame Custom Lighted Mirrored Overhead Carpeted Sole Wood Dining Table

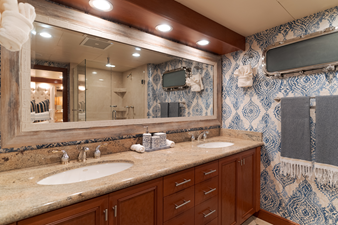

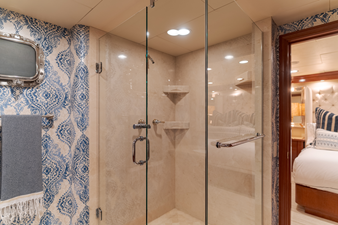

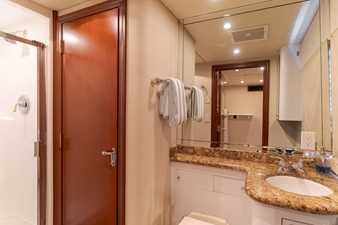

Marble Sole Dometic Vacuum Toilet Glass Shower Enclosure Marble Stall Shower Granite Counter Tops

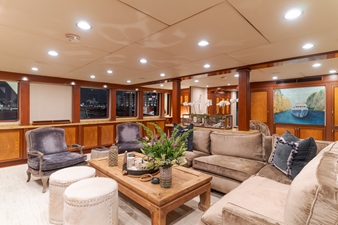

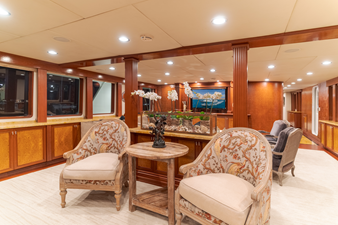

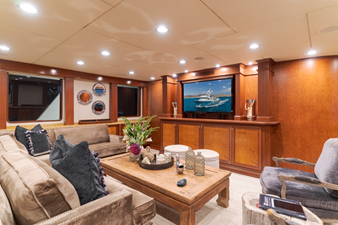

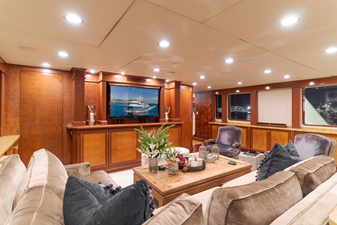

55" Sony Bravia LCD TV Burl Wall Coverings Lutron Light Control System U-Line Ice Maker Carpeted Sole Granite Foyer w/ Jatoba Wood U Line Refer 2 Cu Ft. Climate Control Marble Counter Tops Saloon Wet Bar Actuated TV Lift

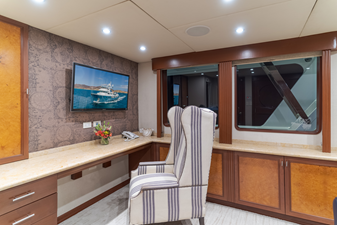

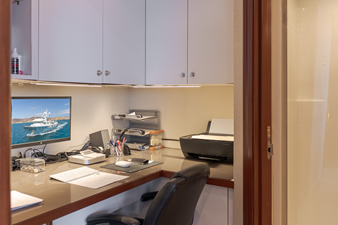

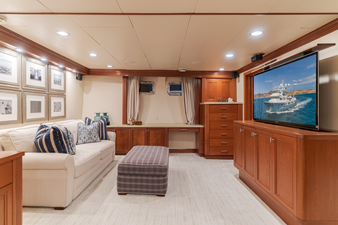

Desk w/ Marble Top Sony Bravia LCD 40" TV Sonos Music System Climate Control Carpet Sole Hunter Douglass Window Shades Wood desk Cabinet Marble Counter Tops Settee Convertible Leather

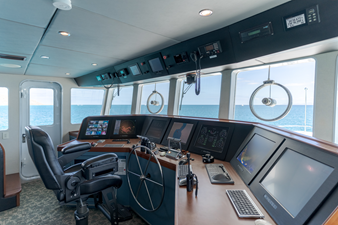

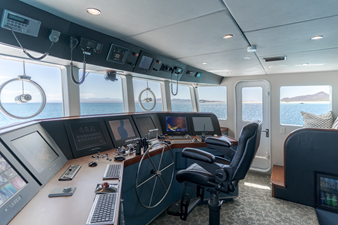

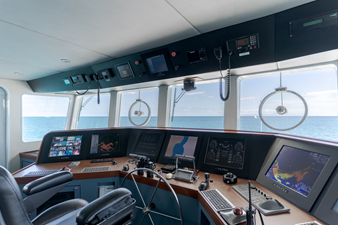

(7) 19" i Tech Monitors Bow Thruster Control Furuno RCU-014 Radar Pneumatic Main Engine Controls Vicon CCTV Camera Simrad AP 48 Autopilot Naid Stabilizer Control Furuno GPS Sirius Satellite Radio Receivers Davis Vantage Pro Weather Station Chart Lockers Dell 27" Monitor Furuno AIS FA-170

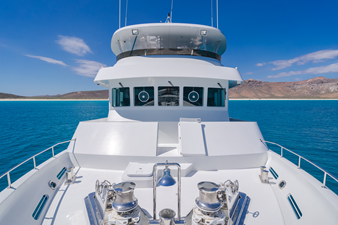

(2) LED Floodlights (4) Stainless Steel Mooring Cleats Water Tight Chain Locker Hatch (2) Steen Vertical Hydraulic Windlass w/ Cathead & Drum Raw and Potable Water Washdowns Stainless Steel Burgee Mast Stainless Steel Bollard (5) Stainless Steel Mooring Line Haws Pipes (2) Anchor Chain Rollers Stainless Steel Bell Tower

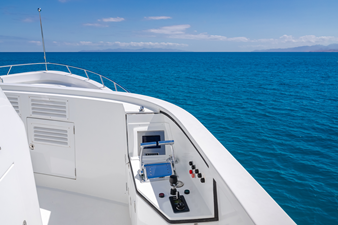

(2) Wing Stations Jog Stick Main Engine Start/ Stops Bow Thruster Control Transmission Controls Refrigeration Compressors (2) Watertight Pilothouse Doors Storage Lockers Fiberglass Bulwarks iTech LCD Monitors Horn & Whistle Controls

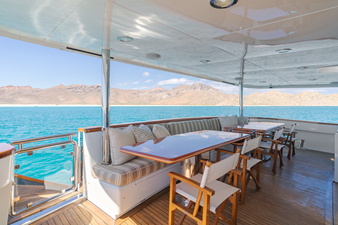

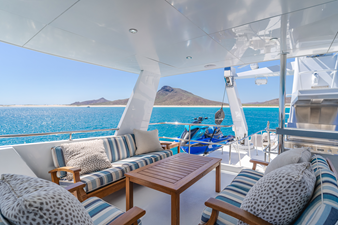

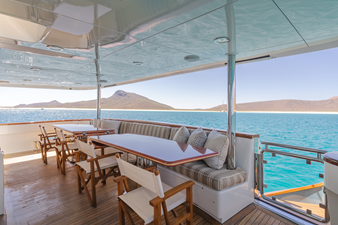

Teak Decks (2) CCTV Cameras Misc. Storage Lockers (2) Maxwell 2200 vertical Warping Winches Granite Counter Tops (2) Transom Step Lockers (2) Mahogany Tables Sun Shade (2) Transom Showers Sink (2) Stainless Steel Transom Doors (2) LED Flood Lights

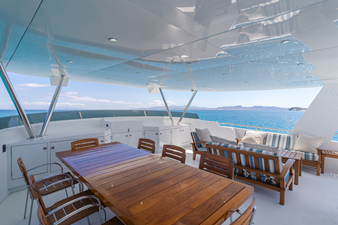

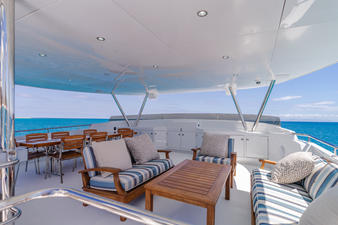

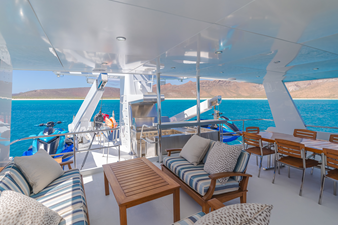

Helm with Full Controls Plexiglass Venturi CCTV Camera Search Light Remote Control Bow Thruster Control (2) Ryobi 2200 Portable Generators Icom Command Mic Main Engine Start/ Stops Teak Coffee Table (2) Maretron DSM 250

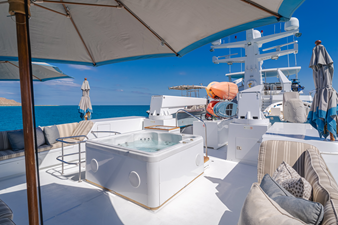

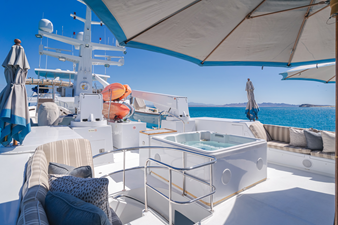

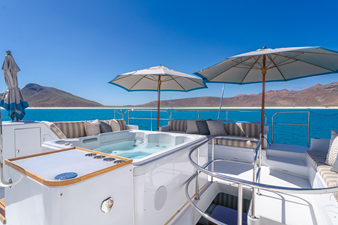

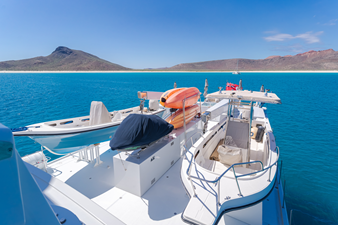

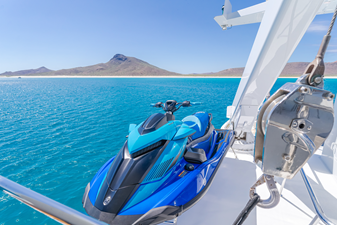

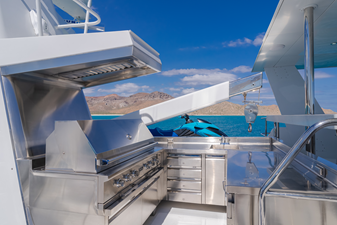

Upper Boat Deck: Viking LPG BBQ, Aluminum Hinged Radar Mast, Crows Nest, (2) Hydraulic King Cranes, Custom Stainless Steel Grill Area, (2) Stainless Steel Refer Units, Air Accumulator Tank, (2) Yamaha Wave Runners. Boat Deck: Snorkel and Dive Gear Lockers, Northern Lights 12 Kw Genset, Jacuzzi, Diesel Fuel Hose Reel & Nozzle, (2) King Cranes 8022-14 Hydraulic, SS Ensign Staff, U- Line Refrig, (1) Gasoline Storage Tank w/ Pump & Pump, (3) Plastic Kayaks, (2) SUP Paddle Boards. Boatswains Locker: Hydraulic Power Pack Controls, Crane Remote Controls, Davit Remotes, Misc. Parts, Tool Chest, High Pressure Washdown Pump, Bench Vise, Evans Air Compressor, Portable Power Tools.

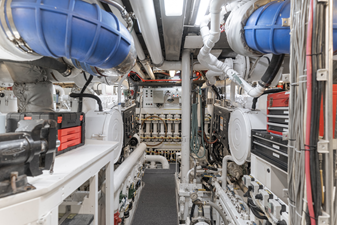

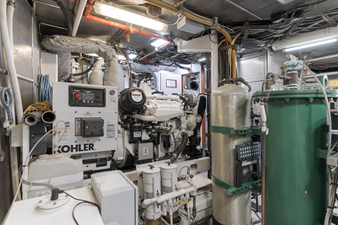

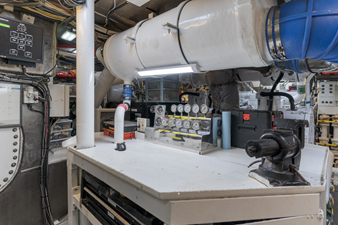

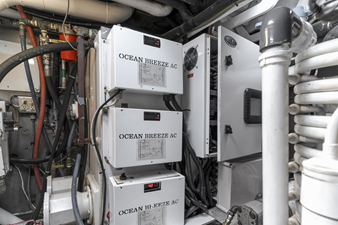

(2) Sea Recovery 1500 GPD Water Makers Viking Fuel Transfer Pumps (2) Low Sea Chests Hydraulic Bow Thruster Accumulator Tank High Sea Chest Heart 2000 Watt Inverter and Remote (4) Tool Chests (2) Ingersol Rand 2475 Air Compressors (2) A Seas AC power Convertor Zeks Compressed Air Chiller (2) Ocean Breeze 120,000 BTU Chillers 120 Gallon Sludge tank Alfa Laval Fuel Centrifuge Husky Tool Chest (1) Ocean Breeze 60,000 BTU Chiller AC Oil Transfer Pump Xantrex 24 VDC 25 Amp Charger Sewage Treatment Plant Tecnicomar and Oil Water Separator Boss

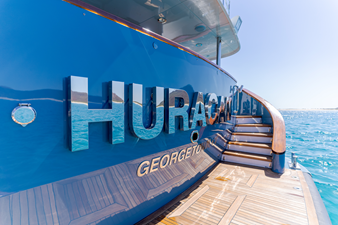

Naiad #503 Hydraulic Stabilizers (18) CCTV Cameras (10) Wireless Access Points Linear Polyurethane Topside & Hull Paint Custom Stainless Steel Lighted Name Boards Schottel S-15-L 500 HP Bow Thruster (4) Below Waterline Cameras Stack Crows Nest Stainless Steel Rub Rails Stainless Steel Anchor Strike Plates
