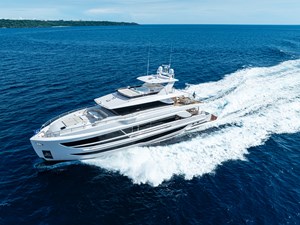

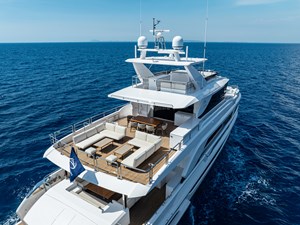

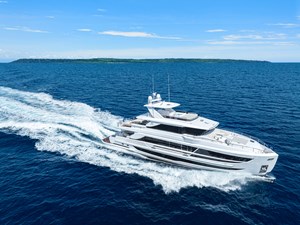

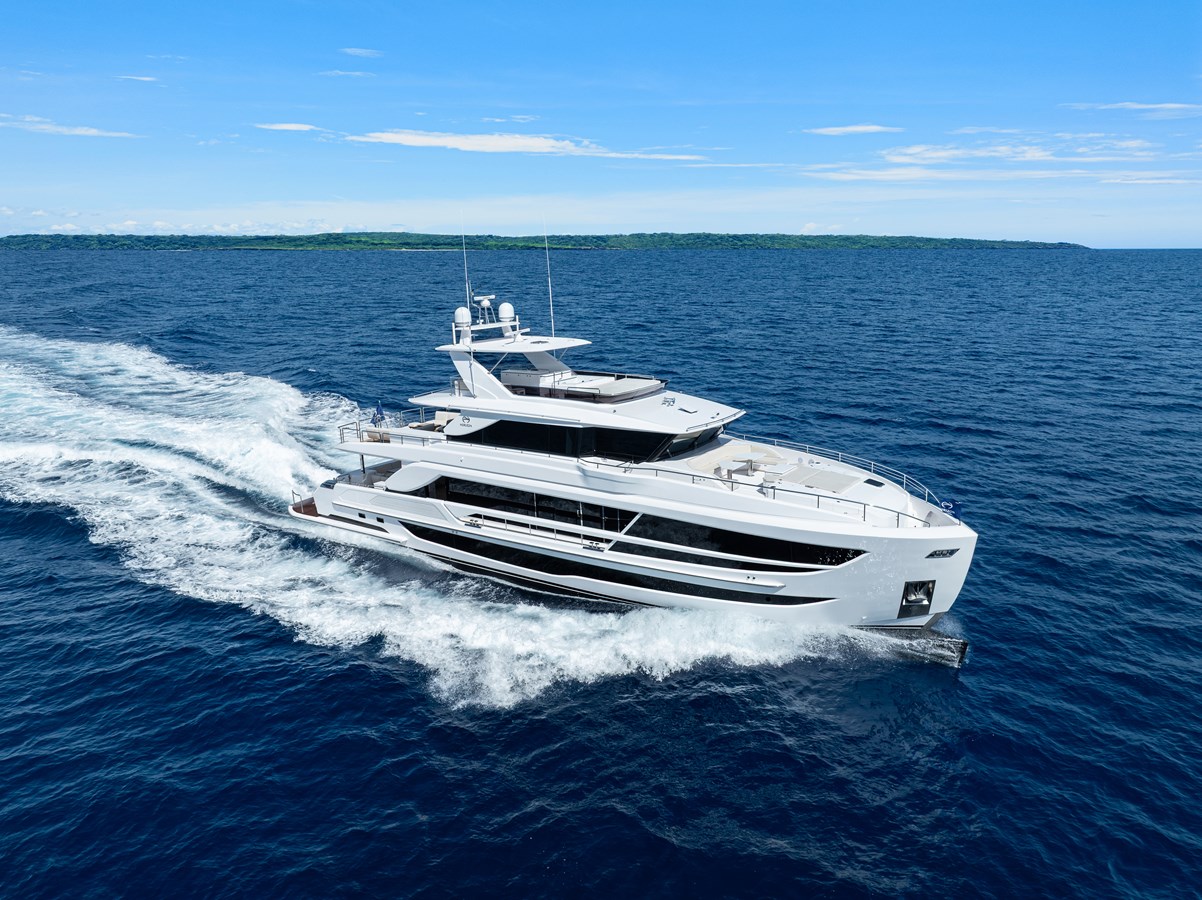

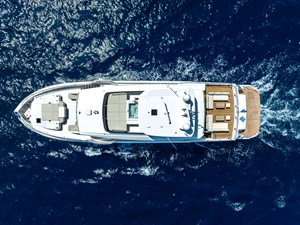

Horizon FD100 - 2025 30.96m HORIZON YACHTS Horizon FD100-914 / AVAILABLE FLIBS 2025
Fort Lauderdale Florida United States
Call for Price

• ABS/DNV type-approved fiber/resin & sandwich core material applied
• White gelcoat finish for hull above water line, exterior decks, and furniture
• One-piece hull and superstructure utilizing SCRIMPTM technology with Horizon patented 6D infusion, incl. longitudinal and transverse stingers
• Hull, deck, and superstructure are built with licensed process SCRIMPTM for improved strength and less weight
• Hybrid design hull bottom with sandwich construction and solid fiberglass
• High-density Divinycell or equivalent foam cored hull sides, decks, and superstructure
• Stringers with high-density foam coring
• Interior structural components are all properly bonded to the hull
• Strong collision bulkhead structure for extra safety
• International anti-fouling bottom paint with anti-osmosis treatment
• PropSpeed/PropGold metal paint for underwater appendages
• Tunnels for reduced draft
• High Performance Piercing Bow (HPPB) with S/S protection plates
• Upper deck with bump out design at PORT and STBD side
• Asymmetrical skylounge design (STBD side wide body, incl. a non-skid ledge and grab rail above)

• Teak aft deck, teak boat deck, teak swim platform and teak steps to boat deck, flybridge, and swim platform. Non-skid for the rest
• FRP cap rail
• Maxwell VWC3500 vertical hydraulic anchor winches (x2) w/ local foot switches and remote handheld controller
• 350ft high tensile 1/2” anchor chains (x2) w/ chain stopper and tensioner
• 110Kg S/S anchors (x2)
• S/S rollers (x2) and chain stopper
• Chain counter (x2, one per windlass) in Pilothouse
• Heavy-duty 316 S/S cleats and fairlead w/ rollers
• Aft deck corner hawsers (x2)
• Aft deck Maxwell VC2500 electrical rope capstan (x2)
• A Maxwell VC2500 electrical rope capstan on bow deck
• Bulwarks with flush-mounted courtesy lights
• Bulwark side doors (x2) at aft deck for boarding
• Freshwater/seawater anchor chain washdown system by manual operation
• 1-3/4” handrail with 1-1/2” S/S stanchions and steel cable around entire boat
• S/S flagpole at bow
• Standard lines and ProStock PF-7 fenders (x4) & PF36x48 (x1), incl. Horizon logo covers
• Portuguese bridge with sofa seats as per layout
• Foredeck sunpad cushion with fold-up reclining back rests (x2), cup holders, and pop-up lights (x2)
• One hidden sink to the FWD PORT sidewalk
• A USB charger near one of the outlets on the bow deck
• Frameless windows, slightly tinted tempered laminated
• Low-E glass for the windshield
• Frameless windows, tinted tempered laminated glass for side windows
• Stairs from aft deck to swim platform with S/S gate doors and handrails
• Salon local-made S/S electric sliding entrance door with inflatable seal around the door frame
• Deckhouse sliding side doors with an inflatable seal around the door frame. (x2, one at each side)
• A wind door on each side of the aft deck to its side walkway
• Aft deck sliding/hi-lo foldable table as per design
• Aft deck bar with a sink, a Vitrifrigo refrigerator/freezer (C115IXD4-F), and a Scotsman CU50 ice maker
• One integrated stair from the aft deck to the upper deck
• Hydraulic Hi-Lo swim platform with function as a tender lift; up to max 2500lbs
• Two pop-up cleats on the Hi/Lo swim platform
• Boat hooks (x2, ship loose)
• A FRP storage cabinet beside the PORT staircase of the aft deck
• MarQuipt 7-step aluminum side boarding sea stair (incl. FRP storage box)
• Incorporated a tailor-made Aritex transformer with 440lbs (200KG) capacity to use as a dive step with a wireless remote controller
• Removable rope rails with four poles at each corner of the transformer platform and two other rail sockets at side of the fixed platform. (Total 6 sockets)
• Built-in shower with hot/cold water above swim platform
• A rain shower on the underside of the beach club door
• Sun awning to Foredeck and boat deck (total 2 sets)
• Rub rail around hull sides
• S/S portholes, plus one custom openable porthole in the galley
• Exterior LED step lights
• 2” Removable corner rails (x2) on swim platform (with extra 4 sockets on fixed platform)
• Prewire LED boat name on PORT, STBD, and stern (3 sets, max.8 letters/set)
• Door to exterior area with screen if applicable (except curved door, L-shaped hatch door, and  pantograph door)


STERN STORAGE

• Hydraulic door with a pantograph door in the middle
• ELIO lounge chairs (x2) in the stern storage area as per layout
• Walk-up bar with a sink and a Vitrifrigo Drawer refrigerator/freezer with ice maker (DW180 IXD1-EFI-2) as per the layout
• Wet storage for water toys
• Wet head with sink and shower

• Teak floor w/ wet storage & wet head
• Hydraulic door with rain shower, underneath the door & a pantograph door in the middle
• Teak steps to the swim platform
• Hydraulic Hi-Lo swim platform (1,500lbs lifting capacity) w/ custom transformer (440lb lifting capacity)
• (2) Removable corner rails w/ extra sockets

• Helm station with carbon fiber dashboard panel (as main station)
• Hi/Lo screen between pilothouse and skylounge
• MML Travertine Tile finishes the bar countertop and surrounding wall near the hi-lo screen on the skylounge side
• Air Conditioner
• L-shaped seats w/ table as per layout
• A wet bar incorporated with a Franke sink, two Sub-Zero refrigerator/freezer with ice maker  (DEU2450CI), and two glass lockers at each end, S/S manual sliding door to boat deck with self-lock
• A day head in Skylounge
• Ship loose a retractable ladder (x1)

• Non-skid deck
• Full-width sun pad at the forward tri-deck with fold-up backrests (x2) for two center sun pads
• A hot tub with a shower head and a large edge on one side. (detail design per layout)
• A dual USB charger near the outlet on the STBD side
• Radar arch with antenna bracket
• Windshield with S/S frame and S/S rails around aft deck
• One stair from the upper deck to the Tri-Deck
• FRP seat with table and FRP cabinet (with a sink, a Vitrifrigo refrigerator (C115IXD4-F), and a
• Vitrifrigo ice maker (IMHYDIXN1-X) as per layout
• Oversized drainage with strainers on each corner of flybridge deck and internal overboard drainage
• 55” Hi-Lo TV with cabinet

• Twin diesel engines with reduction gears
• Live SAE-C PTO on gearboxes for thrusters/windlass and stabilizer power
• SAE-A PTO on engines for hydraulic steering gear
• S/S shafts Aqualoy 22 HS
• High-performance S class VEEM Superyacht 6-blade propellers in NiBrAi
• Bronze struts with backing plates
• Shaft and rudder packing glands with Tides Marine dripless seals
• ZF Smart Command engine control with chrome control heads at the helm station
• Prewiring for the future wireless yacht controller
• ONE remote handheld control (with throttles, gears, and thrusters) with 4 plugs (plug locations: Tri-deck, Boat deck, Pilothouse, Aft deck)
• FRP foil balanced blade rudder with S/S rudder stock (x2)
• Seastar Optimus power steering system
• S/S emergency tiller in rudder cabin
• 24” S/S steering wheel
• Underwater exhaust system for engines with bypass mufflers
• Side-Power hydraulic stabilizer system SPS96B VF1950 (1.95 square meter) with “At Anchor” function
• Side-Power hydraulic bow thruster SH700 (700kg) and stern thruster SH550 (550kg)
• Ship loose an extra Side-Power DC cooling pump for backup
• Zipwake interceptor system

GENERAL DESCRIPTION

• Color-coded wiring for easy identification
• AC and DC main electric panel with circuit breakers
• Sub-panel design with circuit breakers in each zone for electrical distribution
• Emergency power package and lighting system
• AC volt duplex receptacles located throughout including engine room
• GFI protection for all AC outlets in exterior, heads, galley, and engine room
• Fiberglass water/exhaust separator for generator
• Electrolysis bonding system
• Cathodic protection with zinc anodes for shafts, struts, etc
• Indirect lighting under the valance in the salon, staterooms, skylounge, and galley
• Dimmer system for LED ceiling lights on aft deck and skylounge or flybridge
• Dimmer system for LED ceiling lights in the salon, pilothouse, master and VIP staterooms
• Italian Vimar outlets & switches for the lighting system
• Motion detection light at the guest foyer close to the staircase
• Underwater lights (x8)
• Prewire for FLIR M364C night vision (no bracket)

AC/DC MAIN POWER SYSTEM

• AC electrical system: 240V/120V, Single-Phase 3-Wire, 60Hz 255 Ah 12V AGM start batteries (x4) for
• engines/generators with battery chargers (x2)
• 210 Ah AGM batteries (x8) for ship‘s DC 24V service power with combined inverter/chargers (x2)
• 210 Ah emergency batteries (x2) above main deck with a dedicated independent battery charger (x1)
• All batteries enclosed with proper fixtures Ignition protected battery switch
• Octoplex multiplexing power distribution system
• Maretron monitoring and control system with a MBB300C for inputting the Maretron info to GARMIN display

 SHORE POWER SYSTEM

• Glendinning shore power Cablemaster (x2)
• 100Amp with 75’ power cable each
• Shore power connection w/ 100Amp ISO boost polarization transformer and galvanic isolator (x2)
• Shore power 100Amp plug (x2) and 100Amp bow inlet (x2)

GENERAL DESCRIPTION

• Marine-grade pipes are applied throughout the boat
• Color-coded piping system for easy identification
• Engine room strainer plumbing with crossover line, freshwater flush, and an extra custom cap
• Pre-wire and pre-plumb for future diving compressor
• Reserve space with pre-wire for one unit of Electrosea CL-2000-X2.0 (Up to 75GPM) (no pre-plumbing)

FUEL OIL SYSTEM

• Fuel tanks with sight and electric gauges and capacity specified in Principal Dimension above ISO grade fuel hose through the entire system
• Dual Racor 75/1000 MA fuel filters/water separator, each engine
• Racor 500 MA fuel filters (x2, one on each generator)
• Oberdorfer electric fuel transfer pumps (x2)
• Oil change pump system for engines, gears, and generators
• Fuel polishing system (x1, 210GPH)

FRESHWATER SYSTEM

• FRP water tank with a capacity specified in the Principal Dimension above
• Freshwater hose bibbs on foredeck, aft deck, boat deck, and Tri-deck
• 30-gal water heaters (x2)
• High-volume Headhunter AC freshwater pressure pump and one DC pump for backup
• Spot Zero SeaXchange XTCII 1800 water maker & ZTC II 2000 water purifier
• Freshwater outlet and hose for filling engine and generator expansion tanks
• Charcoal filters are plumbed into the freshwater line: shore water inlet and galley
• Hot water circulation pump
•

AIR CONDITIONING SYSTEM

• Marine Air VFD chilled water air conditioning system
• Air handlers for the interior area
• A backup air conditioning seawater cooling pump
• Ship loose a backup air conditioning circulation pump
• Honeywell dehumidification system (Honeywell DR65A3000 x5 units, incl. T10 Pro smart thermostat control panel per unit.) No dehumidification system in Beach Club

SANITARY SYSTEM

• Headhunter toilet system for forward cabins and TECMA toilets for crews and stern storage head
• 200 gal holding tank with deck fitting for dockside pump out
• 100 gal sump tank with pump for each shower & washer drainage area
• Headhunter sanitary treatment system (TW-HMX 6001LP)
• Electric level indicators for holding tank and sump tank

BILGE WATER SYSTEM

• Electric Rule Bilge Pumps
• Manual bilge pump (x2) in engine room and forward staterooms
• High water level bilge alarm
• Bilge exhaust ventilation fans
• Deck wash-down pump with outlets at the chain lockers and transom

FIRE SAFETY SYSTEM

• Fire insulation in the engine room
• Fire-resistant treatment for pipe penetrations
• Fixed fire extinguisher FM200 for the engine room with remote pull station
• Automatic/manual shutdown system
• Automatic fire damper system
• Fire Pump (w/outlets & hydrants)
• Portable fire extinguishers (x5)
• Ship loose fire blankets (x3)
• Integrated fire alarm system in pilothouse, with CO and smoke detectors in galley and Engine Room

• 5 ensuite staterooms and 3 crew cabins (incl. 1 ensuite) as per layout
• A laundry room with a sink in the lower deck
• Forward salon layout: salon with formal dining and dining chairs as layout
• Salon sofa/arm chairs/stools/coffee table/side table style and arrangement as per interior package
• Cadorin Rock oak floor for public area, Fabrica Brushstrokes-Glaze carpet for Master Stateroom floor and Fabrica Brushstroke-Gloss carpet for all guest staterooms floor, and SENSI ROMA-MML Travertine tile for galley floor and Angora Pearl for heads floor. (Details please refer to Interior spec)
• Custom rugs for Skylounge and Salon
• Angora Pearl countertop & backsplash for heads and SENSI ROMA-MML Travertine tile countertop & backsplash for galley, guest foyer, and laundry room. (Details please refer to Interior spec)
• Interior Main wood: Dyed oak (70% stain, 30% gloss); Partial walls & furniture: stained oak (70% stain, 30% gloss)
• A feature SENSI ROMA-MML Travertine tile wall in guest foyer
• Interior stairway from main deck to flybridge/ skylounge/pilothouse and forward staterooms
• High-quality Frascio entrance door handle with master key system (including 3 keys) and cabinet door handles per shipyard standard
• High-density hotel-grade pocket spring mattresses for the entire boat, except crew cabins and upper bunks
• Sarlas Belharra fabrics for manual Roman blind (one layer per each) with valance in Skylounge Coulisse Honeycomb light-filtering Shades Sheer for Salon windows

4-panel S/S electric sliding entrance door & manual sliding door to each side of the main salon

Dayhead in main salon aft

L-shaped sofa w/table, armchair, and ottomans

(2) Armchairs & side table to STBD

Custom area rug

Formal dining table & chairs for 10

Free-standing custom storage cabinet

Breakfast bar design

Electric curtains

65" TV

• Enclosed galley w/ Hi-Lo screen & kitchen island
• Professional galley + extensive storage per layout
• Subzero 48" refrigerator/freezer PRO4850 (x1), 24" drawer type under-counter fridge ID 24-R (x1)
• and 24" drawer-type under-counter freezer ID-24F (x1)
• Miele 36” electric induction cooktop KM 7740FR (x1) with Monogram/G.E. exhaust blower ZV800SJSS (x1) above
• Miele dishwasher G7916Sci (x1)
• Miele 30” convection oven H2880BP (x1)
• Wolf 24” drawer microwave MD24TE/S (x1)
• Kitchen Aid trash compactor KTTS505EPA (x1)

King bed w/ storage drawers & nightstands, safe

His and Hers head w/sinks & rain shower

Electric Roman Shades

(2) Opening portholes to each side

50" TV

Escape hatch in Master with ladder

Queen bed w/ nightstands & drawer storage

Large hanging lockers STBD

Ensuite head w/ sink, shower & toilet

43" TV

Queen bed w/ nightstands

Ensuite head w/ sink, shower & toilet

43" TV

Escape hatch up to salon with ladder on Port side

(2) Twin bed (one sliding bed, one fixed)

Ensuite head w/ sink, shower & toilet

32" TV

PORT captain cabin w/ queen bed, ensuite

(2) STBD Bunk crew room

Shared head w/ sink, shower & toilet

Crew mess w/ burner, Miele washer/dryer, refrigerator/freezer, storage

43” TV

SAT TV antenna with a symmetric dummy dome

& prewire for SAT phone

Starlink maritime flat high performance

satellite internet kit

4G/5G Cellular router system with WiFi on board

Exterior connector for shore phone and cable TV

• Garmin GPS with Satellite Compass
• Garmin GMR 1236 xHD3 (6-foot/12kW/96nm)
• radar plus GMR Fantom 54 (4-foot/50W/72nm) radar
• Garmin GPSMAP 9224 - 24" multifunction displays (x4)
• Garmin Fishfinder and transducer
• Garmin Autopilot system
• Garmin Wind/ Speed/ Temp transducers
• Garmin AIS

• Teak upper deck (incl. boat deck, excl. side walkway)

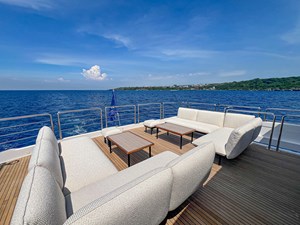

• Boat deck furnishing as per layout: Relaxed L-shape sofas (x2) with coffee tables (x2), ottoman (x2) and a dining table with leaves for 10 (incl. 10 chairs)
• Sarlas fabrics for exterior cushions and sunpad
• Stamoid covers ("Smart 1”, White color) for boat deck loose furniture, helm seats, aft deck seats, and foredeck sunpads and seats
• FRP countertop and bar front
• A wet bar with a sink, a Vitrifrigo refrigerator/freezer C85IXD4X-1 and a Scotsman CU50 ice maker
• One hidden Propane 24" BBQ w/ manual Hi-Lo
• Oversized drains w/ strainers on each corner of the boat deck/upper deck and internal overboard drains
• Tokai Sanshin LED searchlights (x2)
• Lumitec flooding lights (x4; 2 for mast and 2 for boat deck)
• Chrome-plated Buell air horns on top of the radar arch
• S/S flagpole at stern
• Pre-engineer for a future davit installation (w/ capacity for 2500lb) at STBD rear corner of boat deck
• LED warm white lights for the Horizon logo on PORT and STBD side
• A USB charger near the outlet on the stb side of the boat deck
• 10-person life raft with bracket (A pack, 2 units, to be installed in the USA)

• Stidd Slimline 500N-MX2 manual pilot chairs (x2)
• A leaning post with pre-engineering and reinforcement for 3rd pilot chair for future installation
• Integrated instrument panel on the helm station with leather counter
• Sofa seat w/ a table as per layout
• A hinged door to separate Skylounge and the pilothouse
• Heavy-duty Speich S/S wipers with wiper wash system
• Variable speed control on each windshield wiper
• Standard black mesh for the windshield
• Riviera ASTRA magnetic compass on the helm
• International LED navigation lights (incl. anchor, masthead, stern, PORT and STBD side lights,
• total 5 units)
• Prewire masthead light and stern light for tender towing used
• Full set of engine gauges at helm
• Electric fuel and water level gauges
• Monitoring system for equipment (bilge pumps, blowers, navigation lights)
• Surveillance camera system (two PTZ cameras; one at aft deck and one in the engine room)
• USB charger (x1)
• Chart storage

• The engine room offers a clean design with lightweight honeycomb floors
• Watertight bulkheads forward and aft
• Heavy-duty insulated engine room door
• S/S overhead grab rail on each side of engine
• Engine room LED ceiling lights
• Blue LED rope lights under engines
• Anti-noise treatment with sound and heat insulation material for the engine room
• Delta-T reversible AC intake blower(s) w/automatic speed control
• Delta-T engine room de-misters
• Engine load is distributed through flexible mountings on S/S engine bed bonded to FRP hull girder
• Engine alarm system as per engine standard
• Air compressor
• 18K BTU Air handler, incl. controller
• Trident hose for engine exhaust
• Workbench with toolbox under
